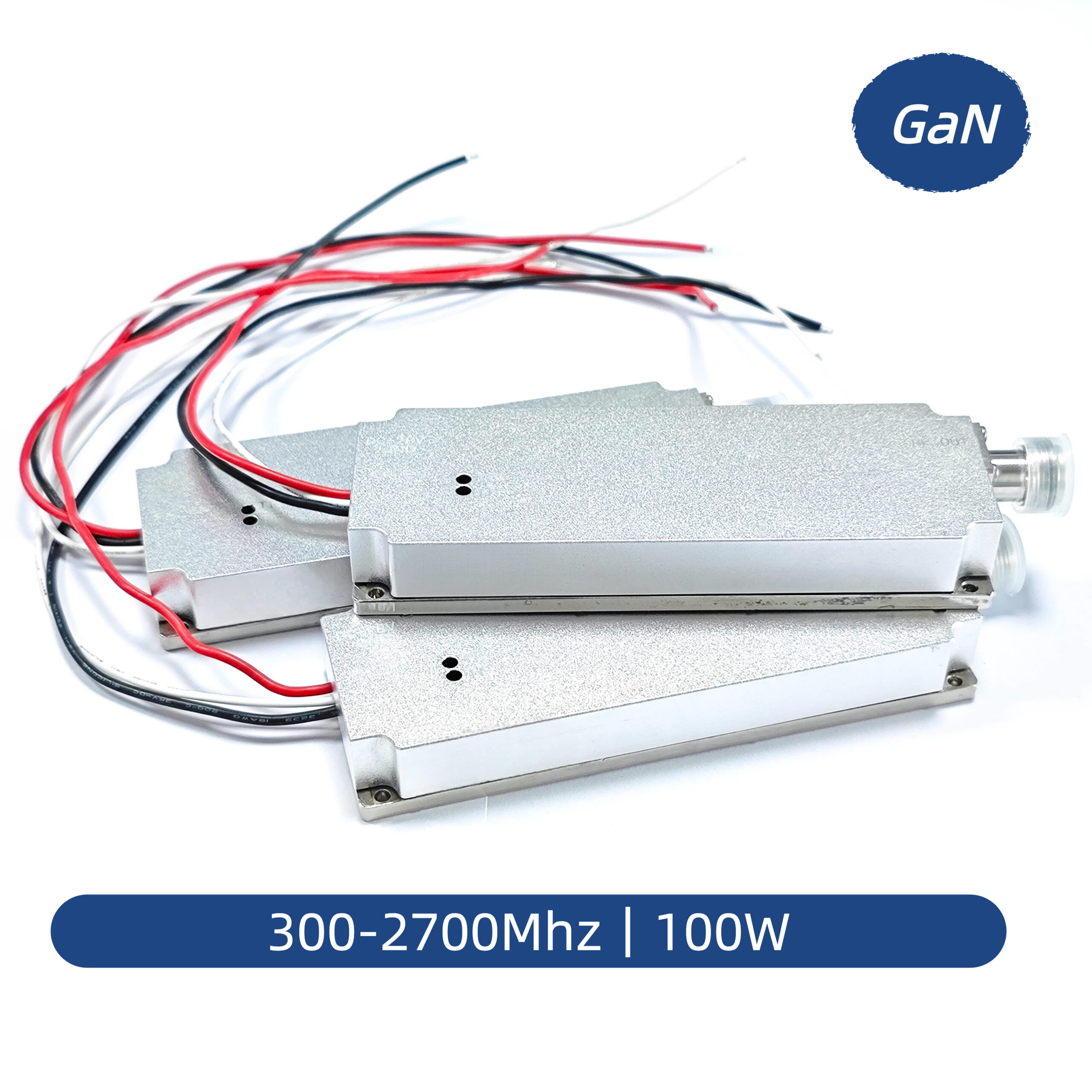

Jamming Module 300-2700Mhz-100W-SG
High-performance RF jamming module 300-2700Mhz-100W designed for controlled RF interference applications. Featuring high output power, stable frequency performance, and wideband coverage, it is widely used in anti-drone systems, RF testing platforms, and security signal control systems. Supports OEM customization and continuous-duty industrial operation.
Product Introduction
Modern RF environments are becoming increasingly complex and unstable — signal congestion, spectrum interference, and unpredictable wireless behavior are now common challenges in both security and engineering fields.
The RF Signal Jamming Module is engineered to provide controlled RF interference capability in authorized and secure environments, helping system integrators and RF engineers simulate, test, and manage complex wireless conditions with precision and stability.
Designed for professional-grade RF systems, it delivers stable high-power output, fast response, and consistent performance under continuous operation, making it a reliable core component for RF security systems, testing platforms, and custom engineering integration.
Whether you are building a security protection system, RF testing platform, or specialized wireless control solution, this module provides the stability and performance foundation your system depends on.
Product Features
- Eliminates Unstable RF Environment Impact with High-Power Output Stability
- Ensures Reliable Continuous Operation for Mission-Critical Systems
- Wide Frequency Coverage for Multi-Scenario RF Engineering Integration
- Built-in Sweep / Noise Signal Modes for Flexible RF Environment Simulation
- Low Drift, High Stability Output for Precise System Control
- Industrial-Grade Thermal Design for 24/7 Operation Capability
- Fast Response Performance for Dynamic RF Scenario Adaptation
- Easy Integration into Existing RF Security & Test Architectures
Application Scenarios
| Industry | Application | Core Value Delivered |
|---|---|---|
| Security System Integration | RF Security & Controlled Environment Systems | Helps integrators build stable RF-controlled security environments with predictable performance |
| Defense & Critical Infrastructure | Perimeter RF Protection Systems | Supports secure electromagnetic environments for sensitive facilities and restricted zones |
| RF Engineering & Testing | Laboratory RF Simulation & Validation | Enables engineers to simulate complex signal environments for product testing and validation |
| Anti-Interference Research | Spectrum Behavior Analysis Platforms | Assists in analyzing RF interference patterns and system resilience under stress conditions |
| Large Facility Security | High-Density Signal Environment Control | Improves RF stability in complex environments such as stadiums, airports, and large venues |
| Custom Engineering Projects | OEM / ODM RF System Integration | Serves as a core RF module for customized wireless engineering solutions |
Specification Parameters
| Test item | Metric | Unit | Remarks | |
| frequency range | 300-2700 （bandwidth 100-200M） | MHz | Customizable frequency band Digital Source OR Analog Source | |
| working voltage | 28 | V | 28-32V | |
| gain | 45-50 | db | / | |
| Output Power | 50±0.5 | dBm | ≤9A | |
| Output port in SWR | ≤2 | / | No power supply, the grid points the test | |
| High and low temperature test | Working environment | -30～+55 | ℃ | -30℃~+55℃ |
| Power stability | 1.5 | dB | ||
| Power supply requirements | ≥15A | / | A CW output of 100W | |
| Power supply interface | Perform capacitive | / | Optional：Red and black line | |
| Enable control | Have a choice | / | High open and low closed | |
| The vibration requirements | / | / | Meet the requirements of military on-board equipment | |
| The RF input / Output connector | N | / | Mother head | |

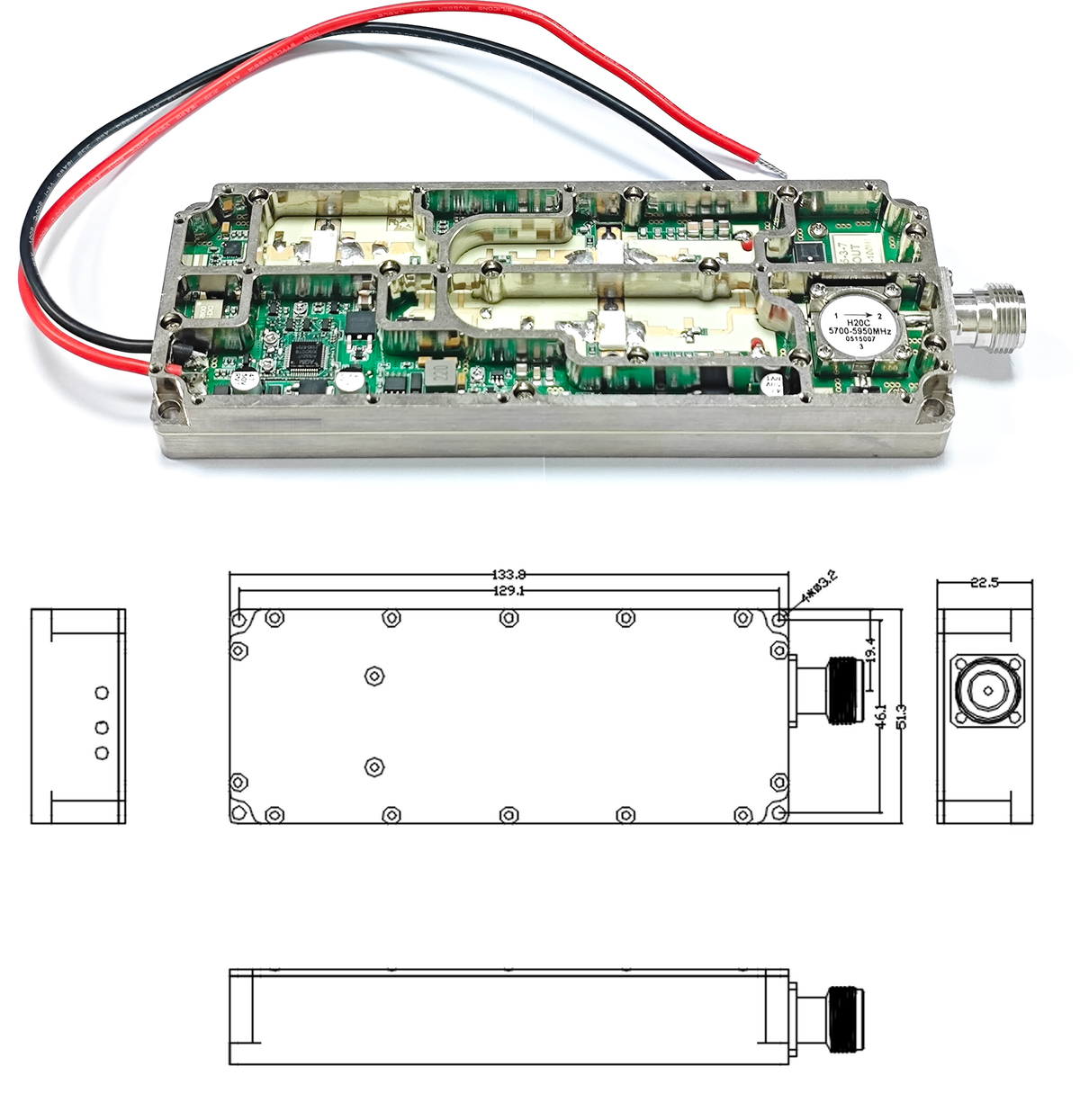

| Size | 133.8*51.3*22.5 | mm | Excluding the SMA heads | |
| Mounting Hole | 129.1*46.1 | mm | M 3*10 | |
| Weight | 0.3±0.05 | Kg | / | |
