Ku-Band Phased Array Low Altitude Surveillance Radar System 10km Detection Range with AI Target Tracking

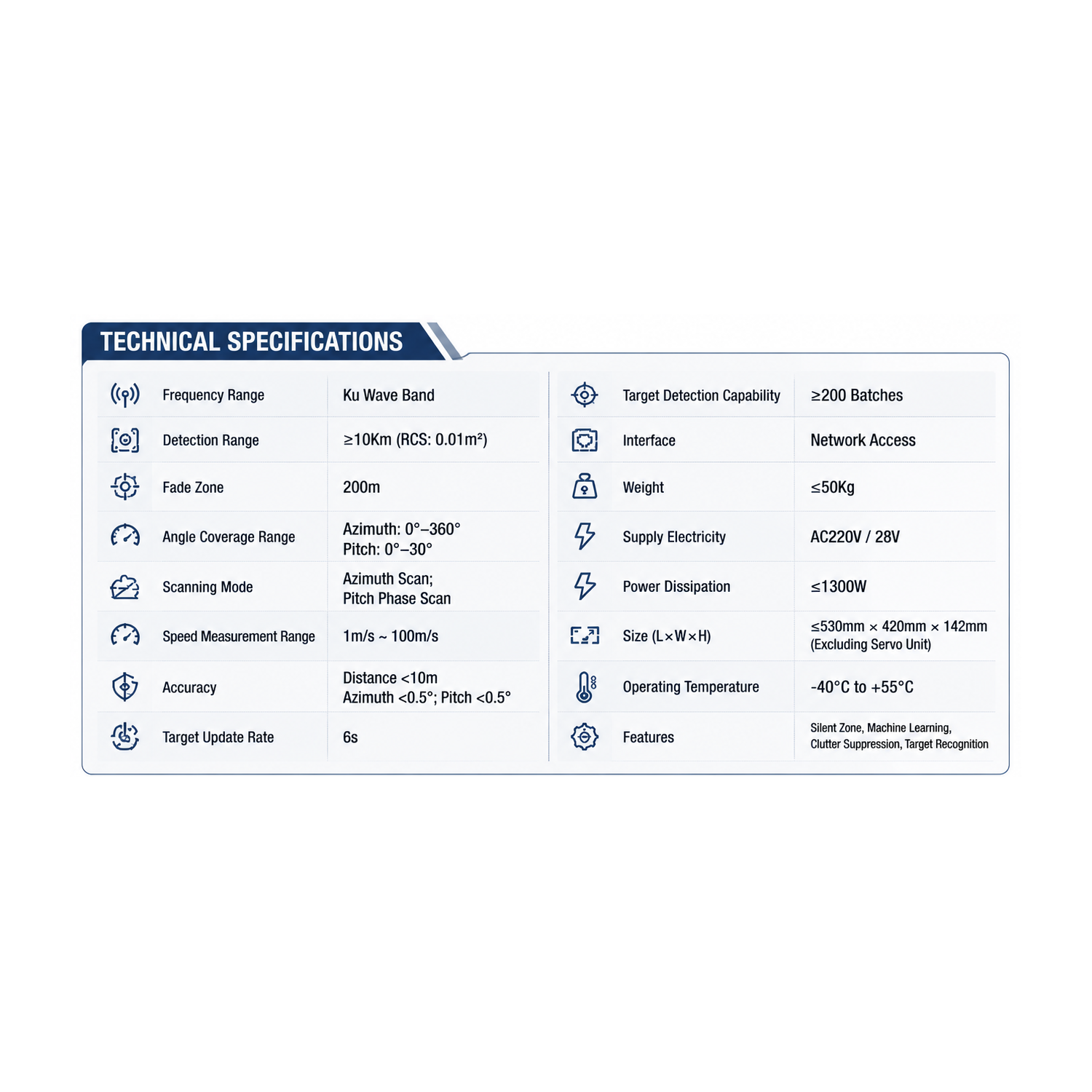

Ku-band solid-state phased array radar designed for all-weather low-altitude surveillance and target tracking. Supports AI-based recognition, 10km detection range (RCS 0.01m²), 360° azimuth coverage, and real-time Doppler tracking. Built for stable operation in complex environments with clutter suppression and cloud/rain filtering.

Category Tag Brand:
Inquiry now
  1. Product Overview

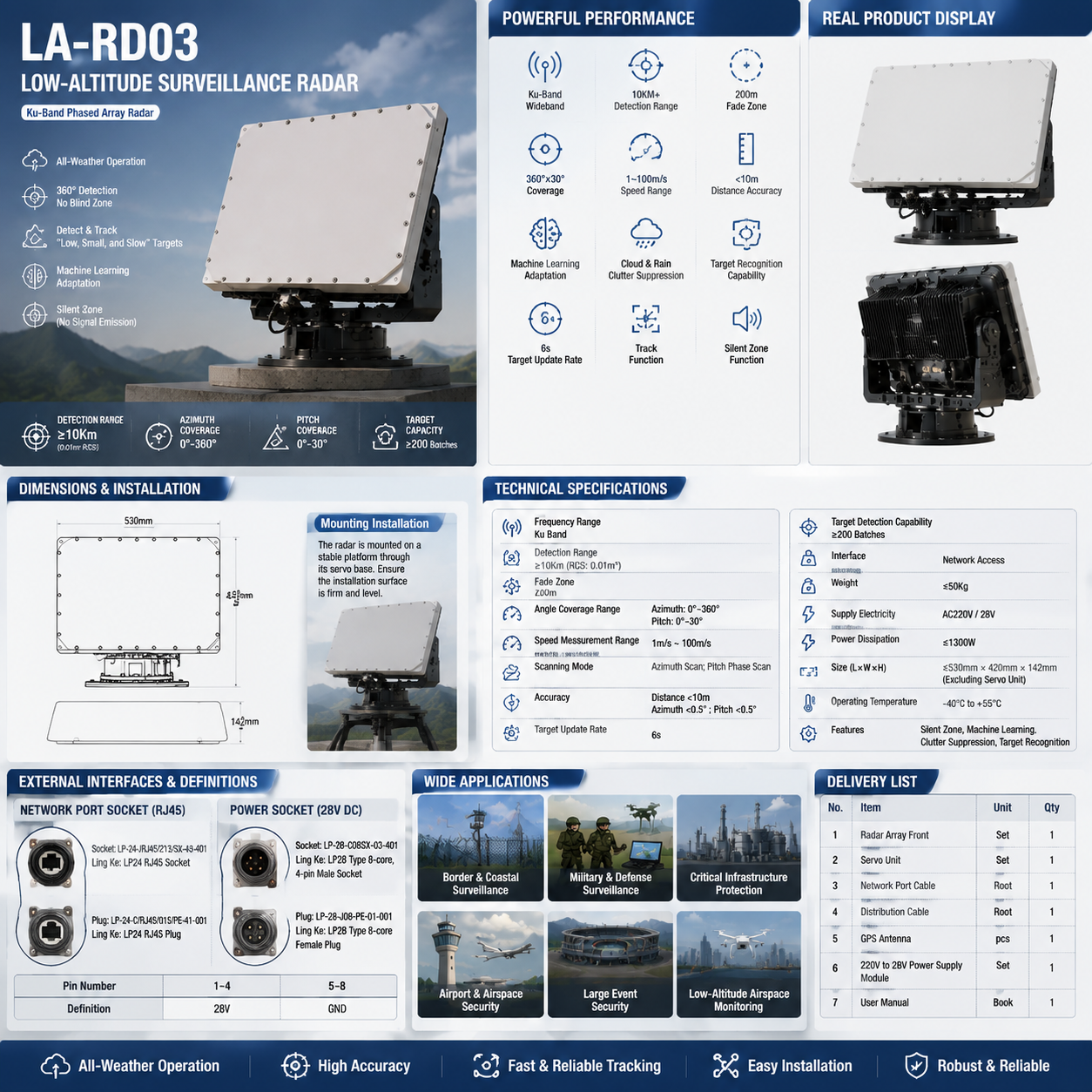

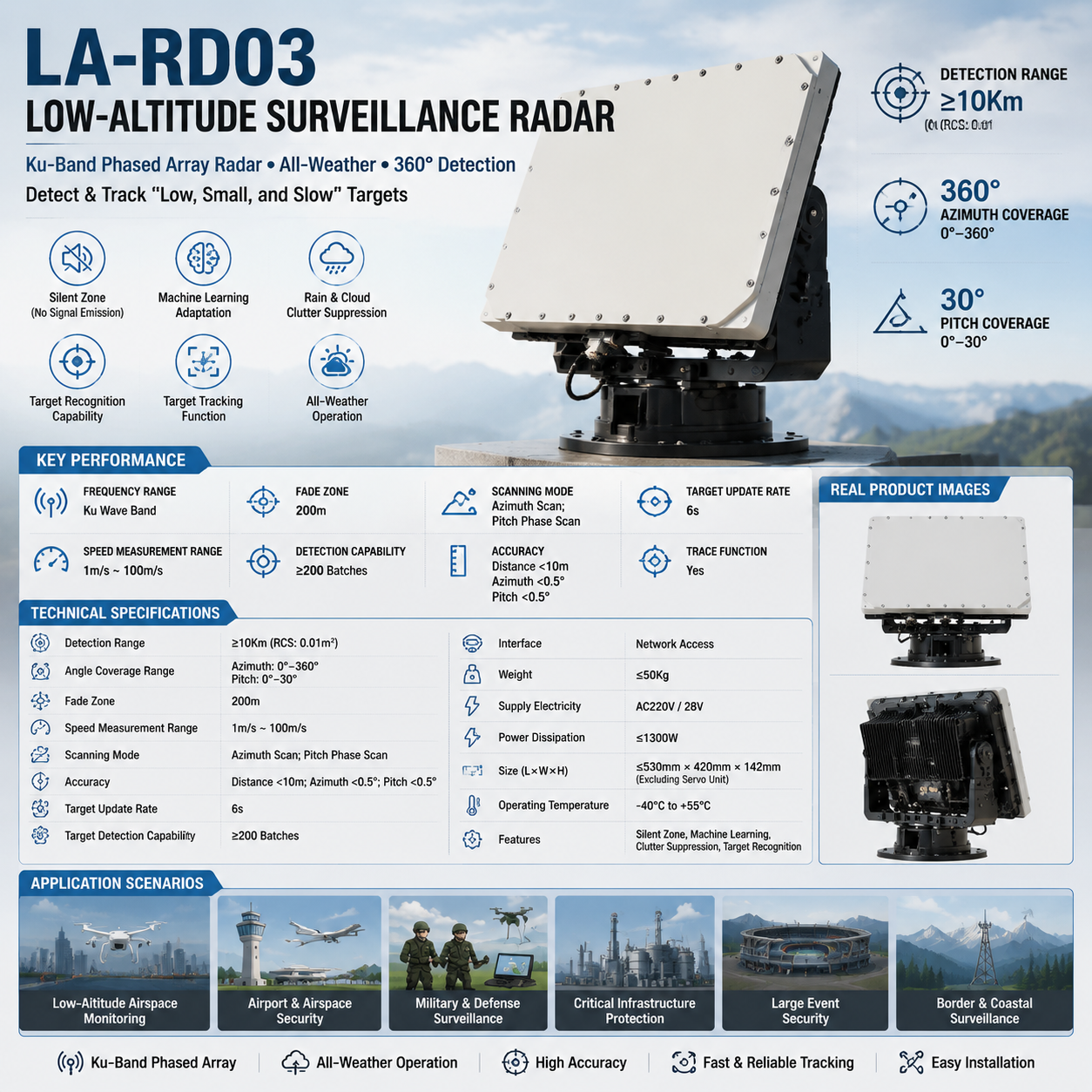

The LA-RD03 low-altitude surveillance radar is a Ku-band phased array radar employing a fully solid-state, fully coherent, and pulse Doppler system, enabling all-weather detection and tracking of fast-maneuvering “low, small, and slow” targets. Utilizing azimuth scanning and pitch phase scanning, it offers superior cost-effectiveness compared to two-dimensional phased array and multi-beam radars.

  1. function

· Supports the silent zone feature, which prohibits external signal emission within the silent zone.

· The device possesses machine learning capabilities, enabling it to adapt to its operational environment.

· The device features cloud and rain clutter suppression, enabling round-the-clock operation.

· Has target recognition capability.
