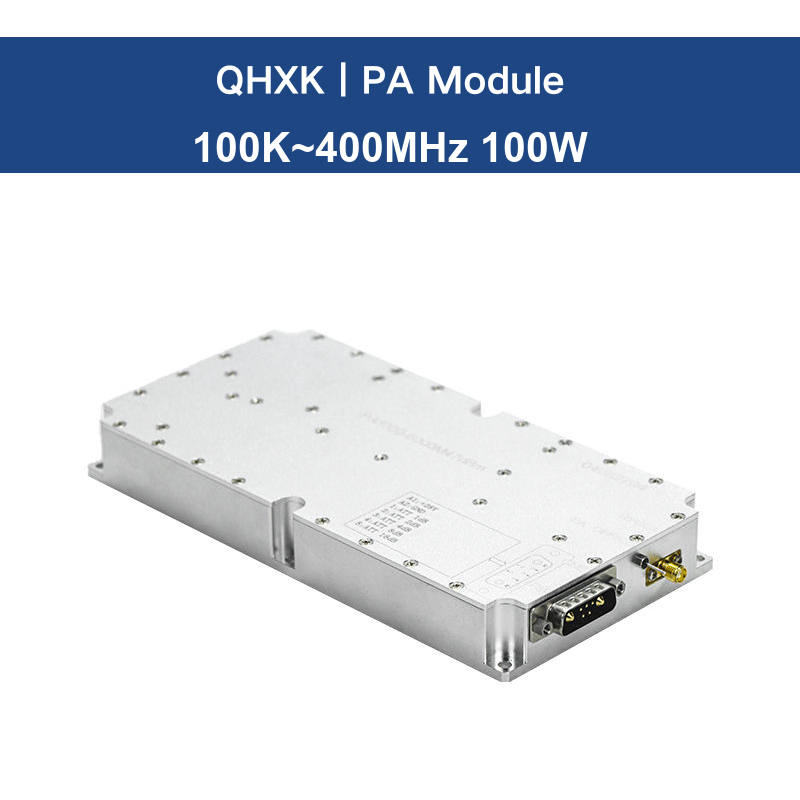

RF Power Amplifier 100K-400MHz 100W
The 100K-400MHz RF Power Amplifier Module is designed for VHF-band signal amplification. It delivers up to 100W output power with high gain and stable performance. Ideal for wireless communication systems, telemetry, remote control, signal boosting, and RF laboratory applications.
Product Introduction
The RF Power Amplifier (PA) Module is designed to amplify RF signals and enhance transmission performance across a wide range of wireless communication applications. Featuring high gain, stable output power, and reliable operation, this module is suitable for communication systems, telemetry, remote control, RF testing, industrial wireless networks, and other RF applications.
Built with advanced RF amplifier technology, the module delivers excellent signal amplification while maintaining efficiency and signal integrity. Its compact design, robust construction, and flexible integration capabilities make it an ideal solution for both standard and customized RF system requirements.
Product Features
- High Gain up to 50 dB
- Output Power up to 100W（Customizable）
- Wide Frequency Coverage （Customizable）
- Excellent Thermal Stability
- Continuous Duty Operation
Application Scenarios
| Industry | Application | Use Case Description |
|---|---|---|
| Defense | Counter-Drone / Anti-UAV Systems | Integrated into drone detection and jamming systems for perimeter security at military bases |
| Security | Prison & Correctional Facility Protection | Prevent unauthorized drone deliveries of contraband at high-security facilities |
| Events | Large-Scale Event Security | Protect concerts, sports events, and VIP gatherings from drone threats |
| Infrastructure | Airport & Airfield Protection | Ensure safe airspace around runways and critical aviation infrastructure |
| Industrial | Wireless Communication Boosters | Extend range and signal strength in remote or challenging RF environments |
Specification Parameters
| Parameters | |
| Frequency | 100KHz~400MHz |
| Max output Power (CW) | ≥ 50dBm |
| Gain | ≥ 50dB (customized) |
| Gain Flatness | ≤ 2±1dB |
| Input VSWR | ≤ 2.0 |
| Input power | 2±2dBm |
| Max Input | +7dBm |
| Temperature protection | Over 80℃ protection |
| PTT port | Default off; 3.3~5V on |
| VCC/Current reference | 32V/15A |
| Working voltage | +28V~ +36V |
| Working current | ≤ 9~12.5A |
| Spurious | ≤ -65dBc |
| Harmonic | ≤ -18dBc |
| Operating Temperature | -40℃~+55℃ |
| RF Connector | SMA-F |
| Power Supply Interface | 4.2mm power-6 |

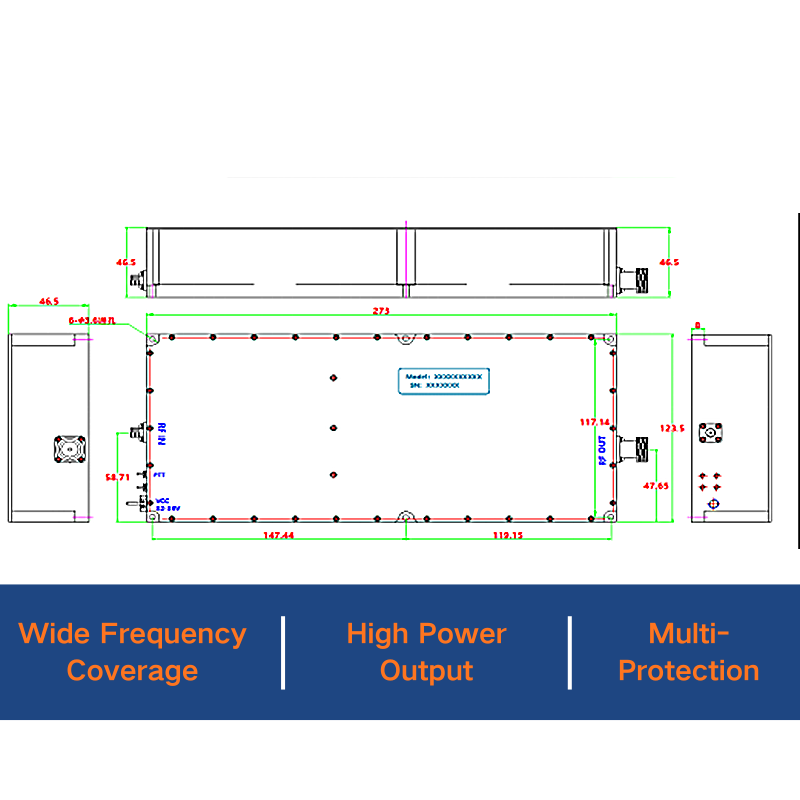

| Dimensions(mm)/Weight | ≤273*123.5*46.5mm (without connectors), ≤2KG |
| Installation method | Radiator shall be installed for power amplifier test |
| Package | 1pcs/box |
