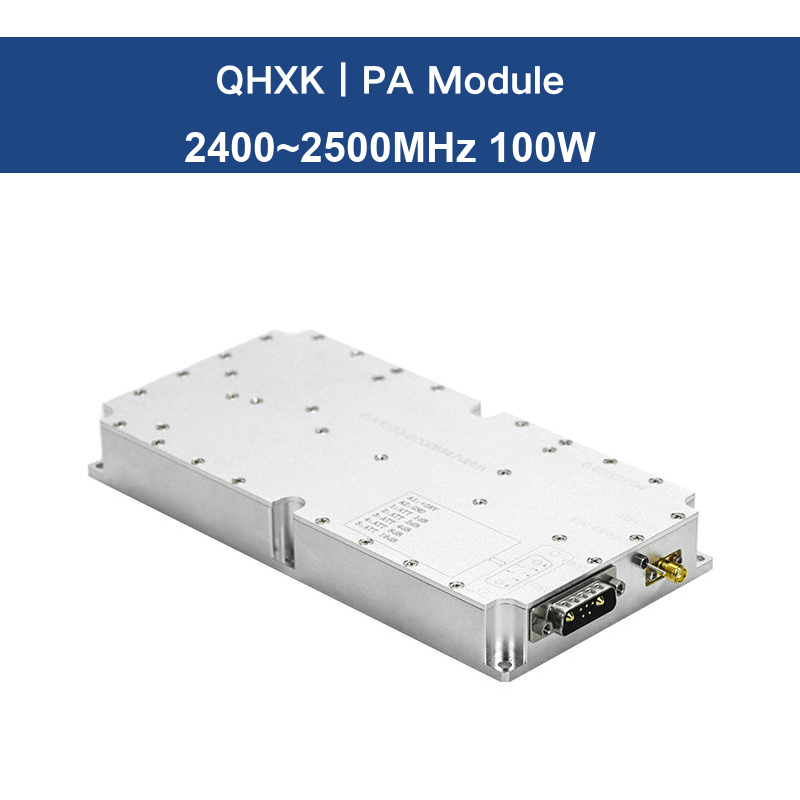

RF Power Amplifier 2400-2500MHz 100W
The 2400-2500MHz RF Power Amplifier Module is designed for VHF-band signal amplification. It delivers up to 100W output power with high gain and stable performance. Ideal for wireless communication systems, telemetry, remote control, signal boosting, and RF laboratory applications.
Product Introduction
The RF Power Amplifier (PA) Module is designed to amplify RF signals and enhance transmission performance across a wide range of wireless communication applications. Featuring high gain, stable output power, and reliable operation, this module is suitable for communication systems, telemetry, remote control, RF testing, industrial wireless networks, and other RF applications.
Built with advanced RF amplifier technology, the module delivers excellent signal amplification while maintaining efficiency and signal integrity. Its compact design, robust construction, and flexible integration capabilities make it an ideal solution for both standard and customized RF system requirements.Product Features
- High Gain up to 49 dB
- Output Power up to 100W（Customizable）
- Wide Frequency Coverage （Customizable）
- Excellent Thermal Stability
- Continuous Duty Operation
Application Scenarios
| Industry | Application | Use Case Description |
|---|---|---|
| Defense | Counter-Drone / Anti-UAV Systems | Integrated into drone detection and jamming systems for perimeter security at military bases |
| Security | Prison & Correctional Facility Protection | Prevent unauthorized drone deliveries of contraband at high-security facilities |
| Events | Large-Scale Event Security | Protect concerts, sports events, and VIP gatherings from drone threats |
| Infrastructure | Airport & Airfield Protection | Ensure safe airspace around runways and critical aviation infrastructure |
| Industrial | Wireless Communication Boosters | Extend range and signal strength in remote or challenging RF environments |
Specification Parameters
| Parameters | |
| Frequency | 2400MHz~2500MHz |
| Max output Power (CW) | ≥ 50dBm |
| Gain | ≥ 49dB (customized) |
| Gain Flatness | ≤ 1±1dB |
| Input VSWR | ≤ 1.7 |
| Input power | 1±1dBm |
| Max Input | +6dBm |
| Temperature protection | Over 80℃ protection，with open circuit protection |
| PTT port | Default off; 3.3~5V on |
| VCC/Current reference | 28V/12A |
| Working voltage | +28V~ +32V |
| Working current | ≤ 9~10.8A |
| Spurious | ≤ -65dBc |
| Harmonic | ≤ -25dBc |
| Operating Temperature | -40℃~+55℃ |
| RF Connector | RFIN-SMA-F/ RFOUT-SMA-F |
| Power Supply Interface | 5557-4.2mm power-6 |

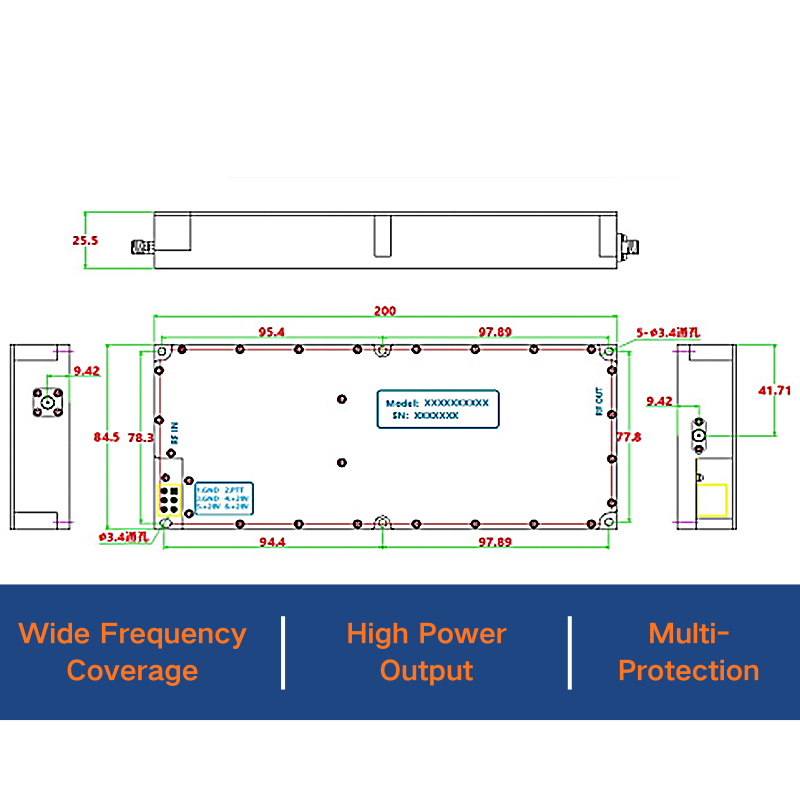

| Dimensions(mm)/Weight | ≤200×84.5×25.5mm (without connectors), ≤640G |
| Installation method | Radiator shall be installed for power amplifier test |
| Package | 1pcs/box |
This product is part of QHXK RF power amplifier modules. For custom frequency, output power, connector, cooling, or mechanical requirements, send an RFQ.
Buyer Notes for 2400-2500MHz 100W RF Power Amplifier
This 2400-2500MHz 100W RF power amplifier module is built for 2.4GHz RF systems that need stable output power and OEM integration flexibility. It can be reviewed for wireless communication, RF testing, telemetry, SDR chains, and authorized counter-UAS RF applications.
Typical Application Fit
- 2.4GHz RF transmission and amplifier chain integration
- Engineering sample testing for wireless or SDR platforms
- Counter-UAS RF subsystem projects requiring a 100W PA module
Integration Notes
- Review input signal level, gain target, working voltage, cooling method, and RF connector before selection.
- System-level performance depends on antenna match, cable loss, enclosure temperature, and duty cycle.
- QHXK can support custom frequency, connector, power, and mechanical requirements.
Related RF Module Resources
- RF power amplifier module overview
- 2.4GHz drone jammer modules
- Power amplifier category
- Contact QHXK for RFQ
Need a matched module? Send QHXK your frequency range, output power, input signal level, voltage, connector, cooling method, and order quantity so our team can recommend a standard or custom RF module option.
