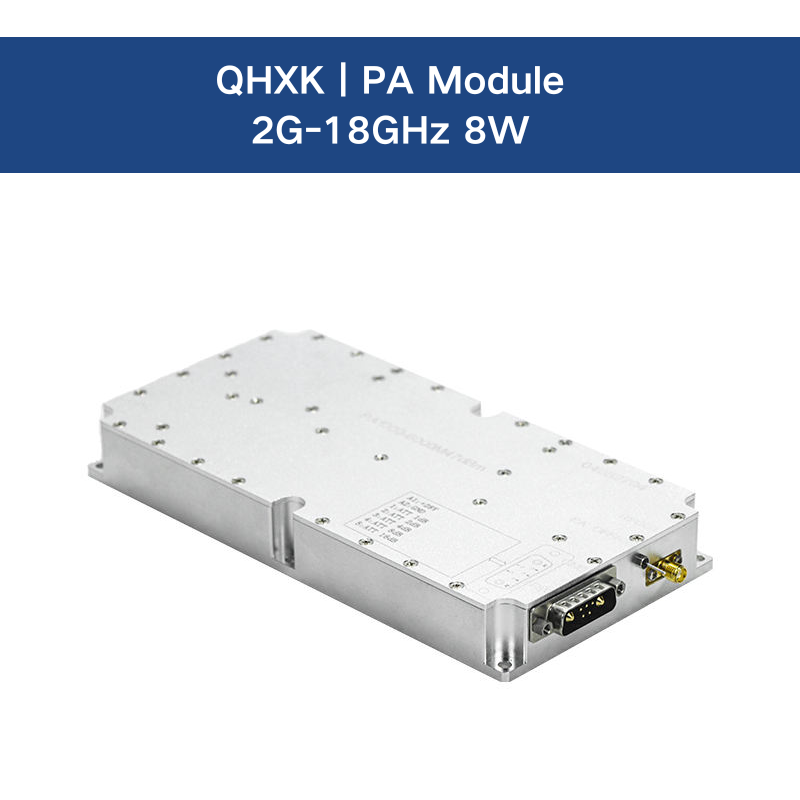

RF Power Amplifier 2G-18GHz 8W
RF Power Amplifier 2G-18GHz 8W for professional RF system integration. Frequency: 2G-18GHz. CW output: ≥ 8W. Gain: ≥ 40dB (customized).
Product Overview
The RF Power Amplifier 2G-18GHz 8W is an RF power amplifier module for integration into professional RF equipment. Its published specifications include frequency coverage of 2G-18GHz, CW output specified as ≥ 8W, gain of ≥ 40dB (customized).
The listed operating supply is +28V~ +30V. The RF connector is SMA-F. The stated mechanical specification is ≤56×44×13mm (without connectors), ≤100g. Temperature protection is listed as Over 80℃ protection.
Technical Specifications
| Parameters | |
| Frequency | 2G-18GHz |
| Max output Power (CW) | ≥ 8W |
| Gain | ≥ 40dB (customized) |
| Gain Flatness | ≤ 2±1dB |
| Input power | 2±1dBm |
| Input VSWR | ≤ 1.7 |
| Temperature protection | Over 80℃ protection |
| PTT port | Default off; 3.3~5V on |
| VCC/Current reference | 28V/4A |
| Working voltage | +28V~ +30V |
| Working current | ≤ 3A |
| Spurious | ≤ -65dBc |
| Harmonic | harmonics Worst point≤ -10dBc |
| Operating Temperature | -30℃~+55℃ |
| RF Connector | SMA-F |
| Power Supply Interface | feedthru capacitor |
| Dimensions(mm)/Weight | ≤56×44×13mm (without connectors), ≤100g |
| Installation method | Radiator shall be installed for power amplifier test |
| Package | 1pcs/box |
Integration Considerations
Plan the power supply, RF connections and thermal management around the electrical and mechanical specifications shown above. Contact QHXK for configuration options and documentation.
