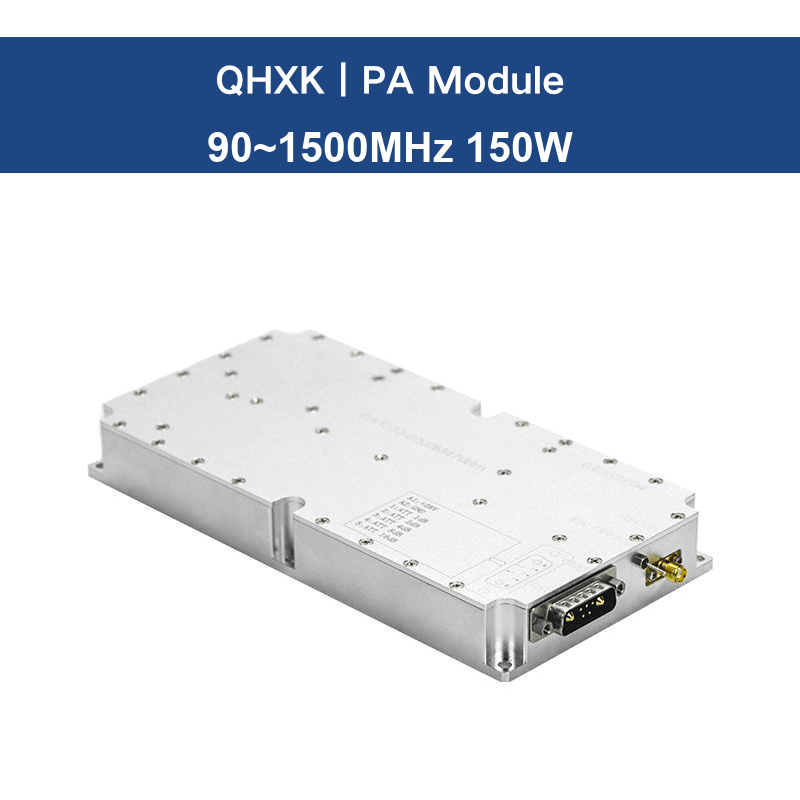

RF Power Amplifier 90-1500MHz 150W
RF Power Amplifier 90-1500MHz 150W for professional RF system integration. Frequency: 90MHz~1500MHz. CW output: ≥ 47dBm. Gain: ≥ 50dB (customized).
Product Overview
The RF Power Amplifier 90-1500MHz 150W is an RF power amplifier module for integration into professional RF equipment. Its published specifications include frequency coverage of 90MHz~1500MHz, CW output specified as ≥ 47dBm, gain of ≥ 50dB (customized).
The listed operating supply is +30V~ +32V. The RF connector is SMA-F. The stated mechanical specification is ≤273*123.5*46.5mm (without connectors), ≤1.8KG. Temperature protection is listed as Over 80℃ protection.
Technical Specifications
| Parameters | |
| Frequency | 90MHz~1500MHz |
| Max output Power (CW) | ≥ 47dBm |
| Gain | ≥ 50dB (customized) |
| Gain Flatness | ≤ 2±1dB |
| Input VSWR | ≤ 2.0 |
| Input power | 2±2dBm |
| Max Input | +7dBm |
| Temperature protection | Over 80℃ protection |
| PTT port | Default off; 3.3~5V on |
| VCC/Current reference | 30V/9A |
| Working voltage | +30V~ +32V |
| Working current | ≤ 6~7A |
| Spurious | ≤ -65dBc |
| Harmonic | ≤ -10dBc |
| Operating Temperature | -30℃~+55℃ |
| RF Connector | SMA-F |
| Power Supply Interface | 4.2mm power-6 |
| Dimensions(mm)/Weight | ≤273*123.5*46.5mm (without connectors), ≤1.8KG |
| Installation method | Radiator shall be installed for power amplifier test |
| Package | 1pcs/box |
Integration Considerations
Plan the power supply, RF connections and thermal management around the electrical and mechanical specifications shown above. Contact QHXK for configuration options and documentation.
