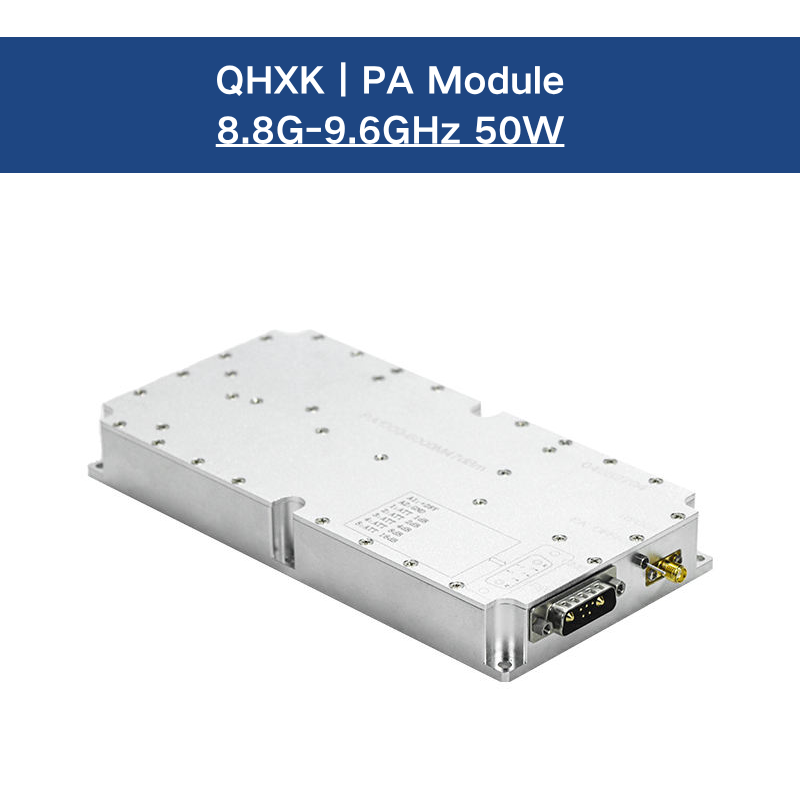

RF Power Amplifier 8.8GHz-9.6GHz 50W
50W RF power amplifier covering 8.8–9.6 GHz. Published CW output is ≥47 dBm, with customized gain ≥46 dB, +28–30 V supply and SMA-F connector.
Product Overview
The RF Power Amplifier 8.8GHz-9.6GHz 50W is an RF power amplifier module for integration into professional RF equipment. Its published specifications include frequency coverage of 8800MHz~9600MHz, CW output specified as ≥ 47dBm, gain of ≥ 46dB (customized).
The listed operating supply is +28V~ +30V. The RF connector is SMA-F. The stated mechanical specification is ≤171×95×25.5 (without connectors), ≤600g. Temperature protection is listed as Over 80℃ protection.
Technical Specifications
| Parameters | |
| Frequency | 8800MHz~9600MHz |
| Max output Power (CW) | ≥ 47dBm |
| Gain | ≥ 46dB (customized) |
| Gain Flatness | ≤ 2±1dB |
| Input power | 2±1dBm |
| Input VSWR | ≤ 1.7 |
| Temperature protection | Over 80℃ protection |
| PTT port | Default off; 3.3~5V on |
| VCC/Current reference | 28V/12A |
| Working voltage | +28V~ +30V |
| Working current | ≤ 7-8A |
| Spurious | ≤ -65dBc |
| Harmonic | harmonics Worst point≤ -20dBc |
| Operating Temperature | -30℃~+55℃ |
| RF Connector | SMA-F |
| Power Supply Interface | feedthru capacitor |
| Dimensions(mm)/Weight | ≤171×95×25.5 (without connectors), ≤600g |
| Installation method | Radiator shall be installed for power amplifier test |
| Package | 1pcs/box |
Integration Considerations
Plan the power supply, RF connections and thermal management around the electrical and mechanical specifications shown above. Contact QHXK for configuration options and documentation.
8.8–9.6 GHz, 50 W model overview
This module is listed for 8800–9600 MHz, with CW output of ≥47 dBm and customized gain of ≥46 dB. The published table specifies gain flatness of ≤2±1 dB, input power of 2±1 dBm, input VSWR of ≤1.7 and an SMA-F RF connector.
The listed working voltage is +28 V to +30 V and working current is ≤7–8 A. Other details include a 3.3–5 V PTT on-level, over-temperature protection, and an operating-temperature range of -30°C to +55°C. The stated dimensions are ≤171×95×25.5 mm without connectors, with a listed weight of ≤600 g. A radiator is specified for power-amplifier testing.
What to verify before integration
Confirm that the required operating frequencies fall within 8800–9600 MHz and that the published output and gain limits apply under the intended test conditions. Check the RF input level, VSWR, DC supply, PTT control and thermal path. Allow for connector clearance when reviewing the mechanical dimensions.
- Verify CW output and customized gain for the exact configuration.
- Check input power and input VSWR against the RF source.
- Confirm +28–30 V supply capacity and current requirements.
- Provide the required radiator and verify ambient-temperature limits.
- Request the latest datasheet and mechanical drawing.
Frequently asked questions
Is 47 dBm about 50 W?
Yes. 47 dBm is approximately 50 W. Confirm the output test conditions and guaranteed operating range with the current datasheet.
How does this compare with the 7.7–8.5 GHz model?
Both listings specify 50 W-class output, but their frequency ranges differ. Compare the 7.7–8.5 GHz, 50 W model only if its operating band meets your system requirement.
Read the wideband vs. narrowband RF amplifier comparison and RF PA selection guide. Browse the RF power amplifier module range or contact QHXK for the current technical documentation.
