RF Power Amplifier 500-2700MHz 50W
50W RF power amplifier covering 500–2700 MHz. Published CW output is ≥47 dBm and customized gain is ≥47 dB, with +32 V supply and SMA-F RF connector.
Product Overview

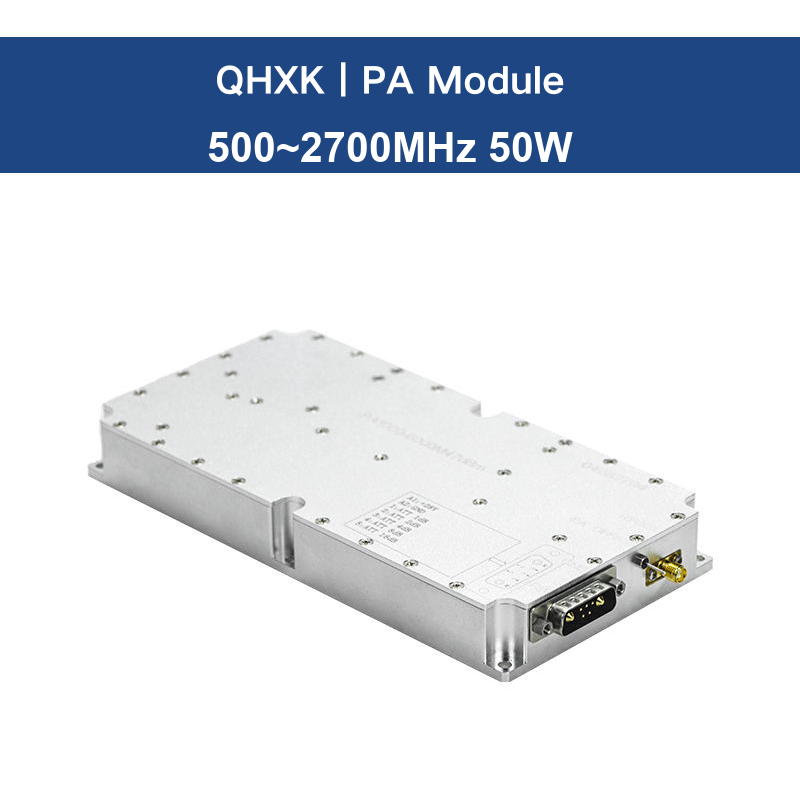

The RF Power Amplifier 500-2700MHz 50W is an RF power amplifier module for integration into professional RF equipment. Its published specifications include frequency coverage of 500MHz~2700MHz, CW output specified as ≥ 47dBm, gain of ≥ 47dB (customized).
The listed operating supply is +32V. The RF connector is SMA-F. The stated mechanical specification is ≤210×101×28.5 (without connectors), ≤860g. Temperature protection is listed as Over 80℃ protection，with open circuit protection.
Technical Specifications
| Parameters | |
| Frequency | 500MHz~2700MHz |
| Max output Power (CW) | ≥ 47dBm |
| Gain | ≥ 47dB (customized) |
| Gain Flatness | ≤ 2±1dB |
| Input VSWR | ≤ 1.8 |
| Input power | 2±2dBm |
| Max Input | +6dBm |
| Temperature protection | Over 80℃ protection，with open circuit protection |
| PTT port | Default off; 3.3~5V on |
| VCC/Current reference | 32V/10A |
| Working voltage | +32V |
| Working current | ≤ 7A |
| Spurious | ≤ -65dBc |
| Harmonic | ≤ -11dBc |
| Operating Temperature | -40℃~+55℃ |
| RF Connector | SMA-F |
| Power Supply Interface | feedthru capacitor |

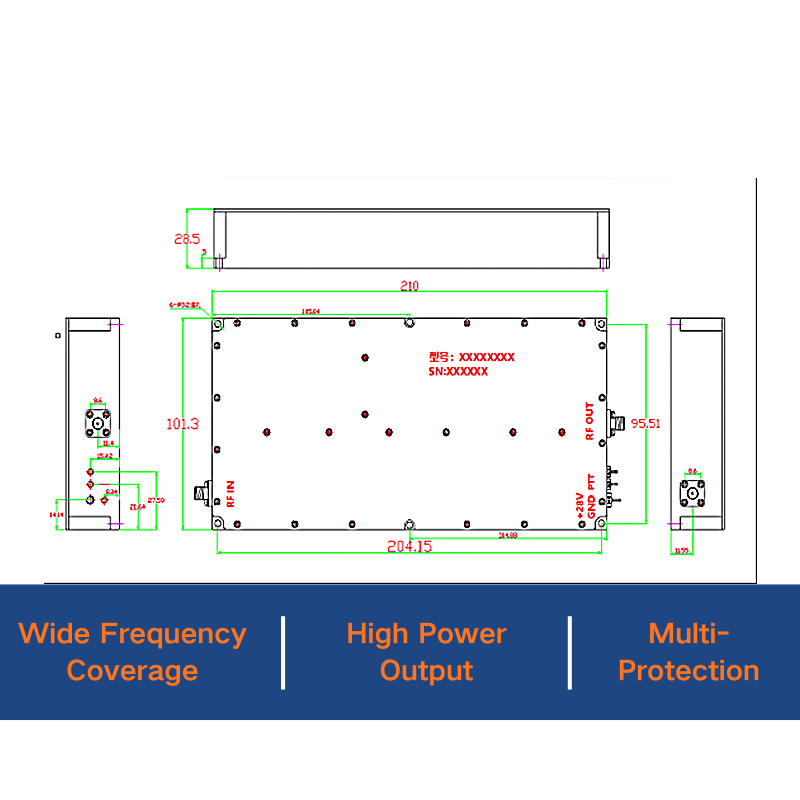

| Dimensions(mm)/Weight | ≤210×101×28.5 (without connectors), ≤860g |
| Installation method | Radiator shall be installed for power amplifier test |
| Package | 1pcs/box |
Integration Considerations
Plan the power supply, RF connections and thermal management around the electrical and mechanical specifications shown above. Contact QHXK for configuration options and documentation.
500–2700 MHz, 50 W model overview
The published specification covers 500–2700 MHz, with CW output of ≥47 dBm and customized gain of ≥47 dB. The table lists gain flatness of ≤2±1 dB, input power of 2±2 dBm, maximum input of +6 dBm and input VSWR of ≤1.8.
The listed working voltage is +32 V and working current is ≤7 A. The RF connector is SMA-F. Other published details include a 3.3–5 V PTT on-level, over-temperature and open-circuit protection, and an operating-temperature range of -40°C to +55°C. A radiator is specified for power-amplifier testing.
What to verify for a 500–2700 MHz design
This is a broad frequency range, so compare the required band with the full manufacturer performance curves. Confirm that the CW output, gain and matching specifications meet the requirement at the frequencies that matter to the system. Also verify the fixed +32 V supply requirement, current capacity, connector arrangement and cooling provisions.
- Confirm frequency coverage and performance at the lower, middle and upper portions of the band.
- Check input drive and maximum input against the RF source.
- Verify +32 V supply capacity and the stated current requirement.
- Confirm SMA-F connection, mounting dimensions and thermal management.
- Request the latest datasheet and test conditions for the ordered version.
Frequently asked questions
Is 47 dBm approximately 50 W?
Yes. 47 dBm is approximately 50 W. The listed value is a CW output specification; confirm its test conditions and guaranteed range with the current datasheet.
Can this model be used across the entire 500–2700 MHz range?
The published frequency range is 500–2700 MHz. Confirm the required output and gain performance at the specific frequencies in your design.
Compare this model with the 700–2700 MHz, 100 W RF power amplifier. For selection help, see the RF power amplifier selection guide and wideband vs. narrowband comparison. Browse the RF PA module range or contact QHXK for technical documents.
