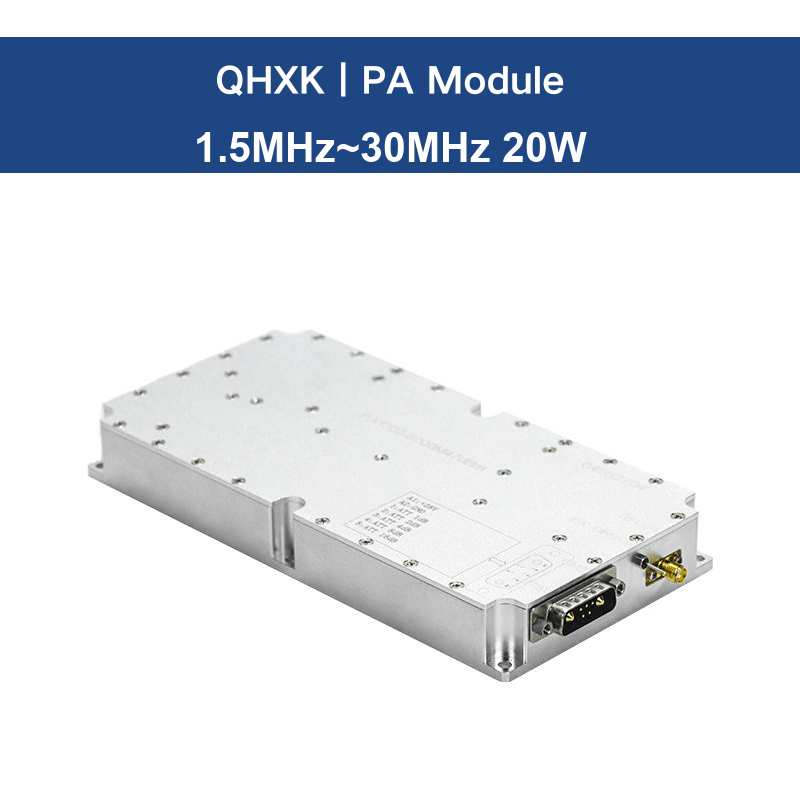

RF Power Amplifier 1.5-30MHz 20W
The 1.5-30MHz RF Power Amplifier Module is designed for VHF-band signal amplification. It delivers up to 20W output power with high gain and stable performance. Ideal for wireless communication systems, telemetry, remote control, signal boosting, and RF laboratory applications.
Product Introduction
The RF Power Amplifier (PA) Module is designed to amplify RF signals and enhance transmission performance across a wide range of wireless communication applications. Featuring high gain, stable output power, and reliable operation, this module is suitable for communication systems, telemetry, remote control, RF testing, industrial wireless networks, and other RF applications.
Built with advanced RF amplifier technology, the module delivers excellent signal amplification while maintaining efficiency and signal integrity. Its compact design, robust construction, and flexible integration capabilities make it an ideal solution for both standard and customized RF system requirements.
Product Features
- High Gain up to 43 dB
- Output Power up to 20 W（Customizable）
- Wide Frequency Coverage （Customizable）
- Excellent Thermal Stability
- Continuous Duty Operation

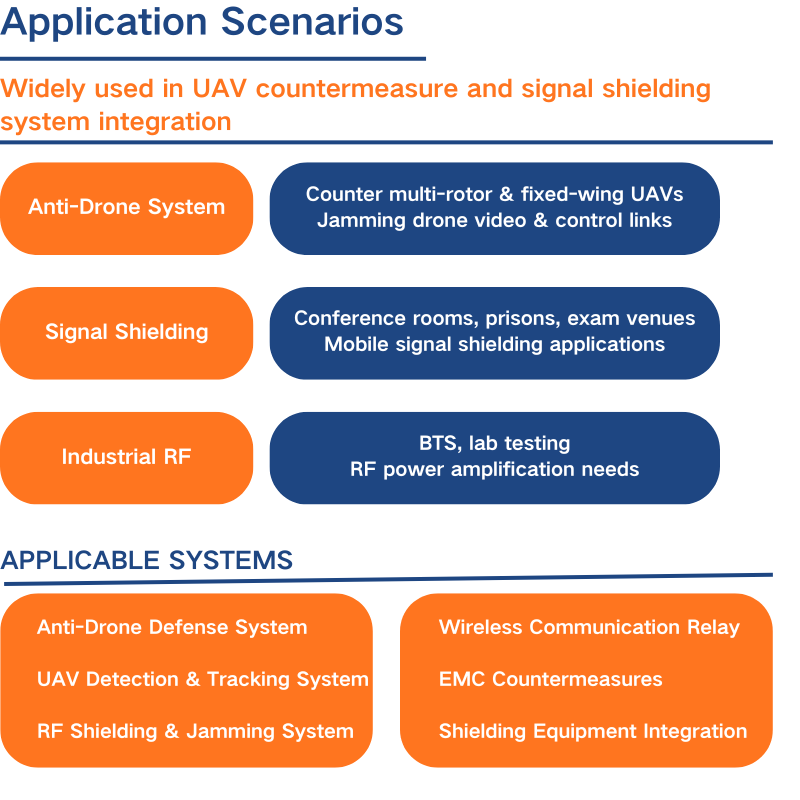

Application Scenarios
| Industry | Application | Use Case Description |
|---|---|---|
| Defense | Counter-Drone / Anti-UAV Systems | Integrated into drone detection and jamming systems for perimeter security at military bases |
| Security | Prison & Correctional Facility Protection | Prevent unauthorized drone deliveries of contraband at high-security facilities |
| Events | Large-Scale Event Security | Protect concerts, sports events, and VIP gatherings from drone threats |
| Infrastructure | Airport & Airfield Protection | Ensure safe airspace around runways and critical aviation infrastructure |
| Industrial | Wireless Communication Boosters | Extend range and signal strength in remote or challenging RF environments |
Specification Parameters
| Parameters | |
| Frequency | 1.5MHz~30MHz |
| Max output Power (CW) | ≥ 43dBm |
| Gain | ≥ 43dB (customized) |
| Gain Flatness | ≤ 1±1dB |
| Input VSWR | ≤ 1.6 |
| Input power | 0±2dBm |
| Max Input | +6dBm |
| Temperature protection | Over 80℃ protection，with open circuit protection |
| PTT port | Default off; 3.3~5V on |
| VCC/Current reference | 28V/6A |
| Working voltage | +28V~ +32V |
| Working current | ≤ 3~4A |
| Spurious | ≤ -65dBc |
| Harmonic | ≤ -10dBc |
| Operating Temperature | -30℃~+55℃ |
| RF Connector | SMA-F |
| Power Supply Interface | feedthru capacitor |

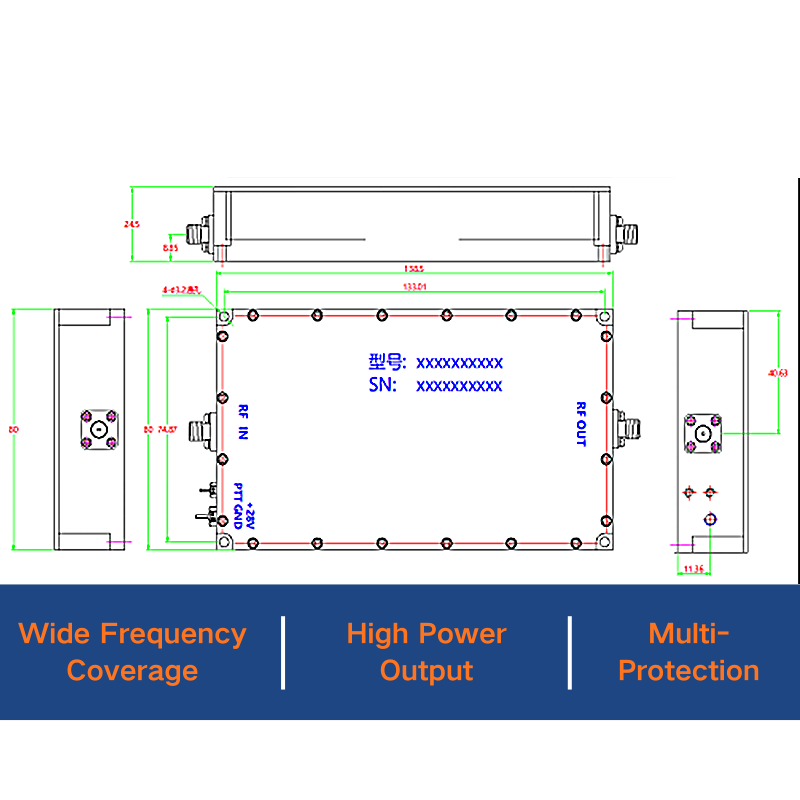

| Dimensions(mm)/Weight | ≤138.5×80×24.5 mm (without connectors), ≤420g |
| Installation method | Radiator shall be installed for power amplifier test |
| Package | 1pcs/box |
