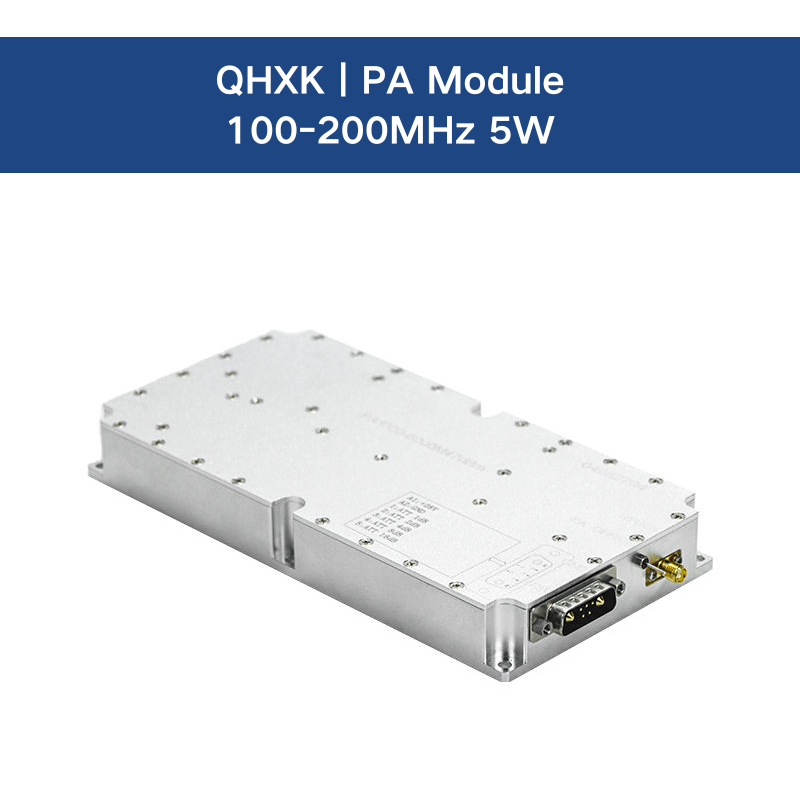

RF Power Amplifier 100-200MHz 5W
5W RF power amplifier covering 100–200 MHz. Published CW output is ≥37 dBm and customized gain is ≥37 dB, with +28–32 V supply and SMA-F connector.
Product Overview
The RF Power Amplifier 100-200MHz 5W is an RF power amplifier module for integration into professional RF equipment. Its published specifications include frequency coverage of 100MHz~200MHz, CW output specified as ≥ 37dBm, gain of ≥ 37dB (customized).
The listed operating supply is +28V~ +32V. The RF connector is SMA-F. The stated mechanical specification is 126*47.5*23mm (without connectors), ≤230g. Temperature protection is listed as Over 80℃ protection，with open circuit protection.
Technical Specifications
| Parameters | |
| Frequency | 100MHz~200MHz |
| Max output Power (CW) | ≥ 37dBm |
| Gain | ≥ 37dB (customized) |
| Gain Flatness | ≤ 1±1dB |
| Input VSWR | ≤ 1.6 |
| Input power | 0±2dBm |
| Max Input | +6dBm |
| Temperature protection | Over 80℃ protection，with open circuit protection |
| PTT port | Default off; 3.3~5V on |
| VCC/Current reference | 28V/3A |
| Working voltage | +28V~ +32V |
| Working current | ≤ 1-2A |
| Spurious | ≤ -65dBc |
| Harmonic | ≤ -10dBc |
| Operating Temperature | -30℃~+55℃ |
| RF Connector | SMA-F |
| Power Supply Interface | feedthru capacitor |

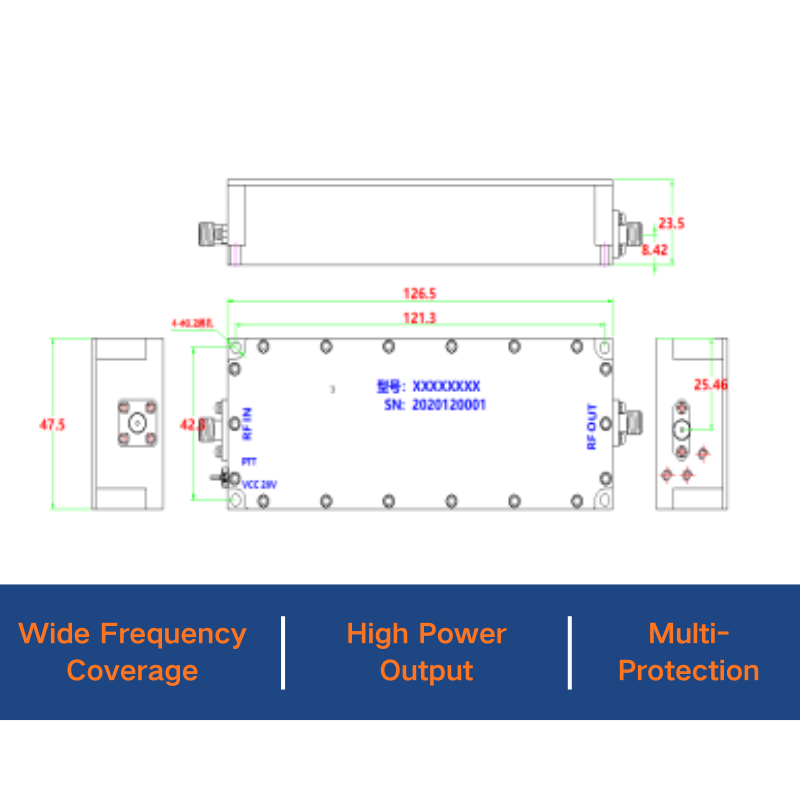

| Dimensions(mm)/Weight | 126*47.5*23mm (without connectors), ≤230g |
| Installation method | Radiator shall be installed for power amplifier test |
| Package | 1pcs/box |
Integration Considerations
Plan the power supply, RF connections and thermal management around the electrical and mechanical specifications shown above. Contact QHXK for configuration options and documentation.
100–200 MHz, 5 W model overview
This RF power amplifier is specified for 100–200 MHz, with CW output of ≥37 dBm and customized gain of ≥37 dB. The table lists gain flatness of ≤1±1 dB, input power of 0±2 dBm, maximum input of +6 dBm and input VSWR of ≤1.6.
The listed working-voltage range is +28 V to +32 V, with working current of ≤1–2 A. The RF connector is SMA-F. Other specifications include a 3.3–5 V PTT on-level, over-temperature and open-circuit protection, and an operating-temperature range of -30°C to +55°C. The stated dimensions are 126×47.5×23 mm without connectors, with a listed weight of ≤230 g. A radiator is specified for power-amplifier testing.
Integration considerations
For a lower-power VHF design, confirm that 100–200 MHz covers the intended operating band and that the 5 W CW output and customized gain meet the system requirement. Check input drive, supply current, SMA-F connection and mounting before installation. Review the thermal requirements even when the nominal output power is comparatively low.
- Confirm frequency coverage and the required output level.
- Check input power, maximum input and VSWR.
- Verify +28–32 V supply and current capacity.
- Confirm SMA-F interface, mounting dimensions and cooling.
- Request the current datasheet for guaranteed limits.
Frequently asked questions
What does 37 dBm represent?
37 dBm is approximately 5 W. The product table lists CW output of ≥37 dBm; verify test conditions and guaranteed performance in the current datasheet.
What is the listed RF connector?
The product table specifies an SMA-F RF connector. Confirm the mating cable and interface requirements against the mechanical drawing.
For an overview of PA specifications, read what an RF power amplifier module is and how it works. For selection criteria, see the RF power amplifier selection guide and browse the RF PA module range. Contact QHXK for the latest datasheet.
