RF Power Amplifier 2300-2700MHz 100W

Product Overview

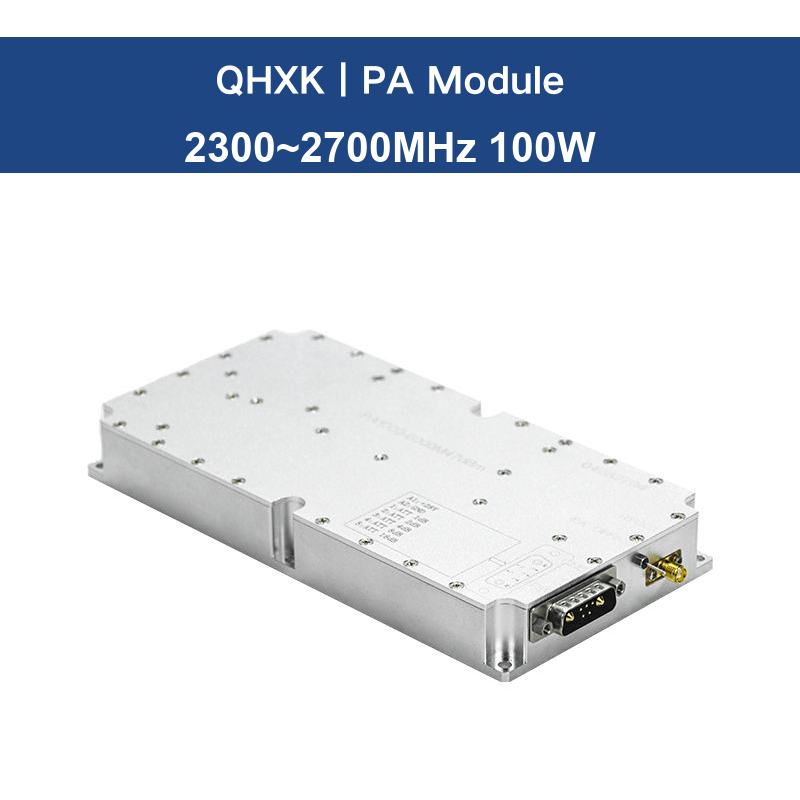

The RF Power Amplifier 2300-2700MHz 100W is an RF power amplifier module for integration into professional RF equipment. Its published specifications include frequency coverage of 2300MHz~2700MHz, CW output specified as ≥ 50dBm, gain of ≥ 49dB (customized).

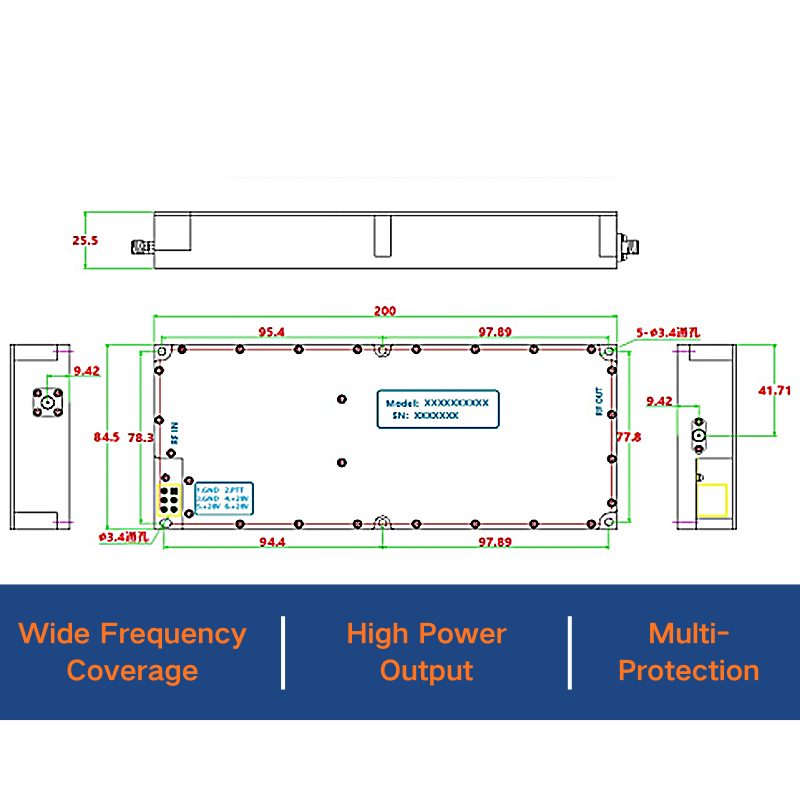

The listed operating supply is +28V~ +32V. The RF connector is RFIN-SMA-F/ RFOUT-SMA-F. The stated mechanical specification is ≤200×84.5×25.5mm (without connectors), ≤640Gg. Temperature protection is listed as Over 80℃ protection，with open circuit protection.

Technical Specifications

Integration Considerations

Plan the power supply, RF connections and thermal management around the electrical and mechanical specifications shown above. Contact QHXK for configuration options and documentation.

2300–2700 MHz, 100 W model overview

This RF power amplifier is specified for 2300–2700 MHz, with CW output of at least 50 dBm (100 W) and customized gain of at least 49 dB. The published table lists gain flatness of ≤2±1 dB, input VSWR of ≤1.7, input power of 1±1 dBm and maximum input of +6 dBm.

RF interface and operating requirements

The RF ports are listed as RFIN-SMA-F and RFOUT-SMA-F. The working-voltage range is +28 V to +32 V and operating current is ≤9–10.8 A. The table also provides a 28 V/12 A supply reference; confirm the required supply capacity and test conditions for the ordered version. The PTT port is listed as default off, with 3.3–5 V for on.

Additional published specifications include spurious output of ≤−65 dBc, harmonic level of ≤−25 dBc, over-temperature protection above 80°C, open-circuit protection and an operating-temperature range of −40°C to +55°C. A radiator is specified for power-amplifier testing. Confirm the mechanical drawing and connector clearance before final enclosure design.

Engineering checklist

• Verify the required operating frequencies are within 2300–2700 MHz.
• Confirm CW output, customized gain and flatness under the required test conditions.
• Check the source drive level and maximum permitted input.
• Verify separate SMA-F input/output connections and the DC supply.
• Plan the specified thermal installation and check ambient-temperature limits.

Frequently asked questions

Is the listed 50 dBm output equivalent to 100 W?

Yes. 50 dBm corresponds to 100 W. Confirm that the CW rating applies at the required frequencies and under the intended test conditions.

Can this module be used across the entire 2300–2700 MHz range?

The product is listed for 2300–2700 MHz. Check the manufacturer’s performance curves and guaranteed limits across the frequencies required by the application.
